Dual Compartment CoolBOX

M16DCe

Dual compartment CoolBOX for separation of products, or dual temperature storage. M16DCe uses dual circuit refrigeration for simplicity and ruggedness in this size range. Built in batteries maintain cooling for transfers between power sources.

NSN 4110-99-217-4289

  • dual 7 litre cooled storage volumes
  • independent temperature control for each side
  • 12, 24, 28v DC power source
  • SD card data logging Stream VISI software included
  • 100-240v 50/60Hz PSU included

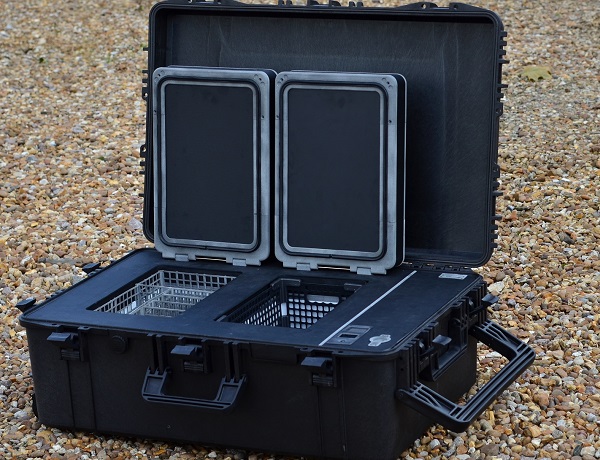

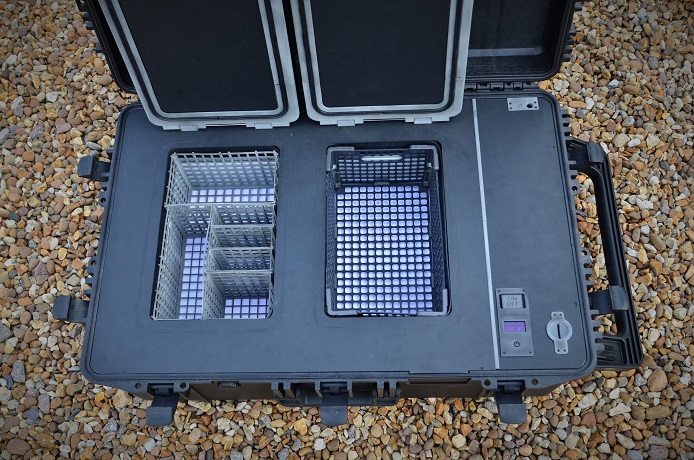

The M16DCe CoolBox is a dual compartment dual control fridge. Ideal for smaller mobile front line MERT deployments. It has one removable basket in each cold chamber which can hold up to 12 x 250 ml blood bags or equivalent. It can operate when mobile and can be loaded onto a vehicle by one person.

It has an external display showing temp/battery condition and has an SD card slot for recording data using our Visi software programme.

Two independent chambers (set different temperatures)

  • fridge/freezer or separate blood and products
  • very high insulation level

Rugged enclosure for forward medical environments

Simple to use under pressure - turn on and it keeps cool

  • Weight 31.5 kg
  • Size: 800mm x 540 mm x 320 mm high
  • Power: 12,24,or 28 v vehicle or aircraft supply at <10A.
  • Cooling: 2 x 7 litre capacity
  • Temperature: 4°C at up 46°C (52° short periods)

A variety of accessories are available, from customer requests. We are happy to take your further requests for additional items to support the product. Popular items include marine and desert insulated bags, and solar power sources.

  • Internal baskets
  • SD card
  • Desert bag/case
  • Solar Battery
  • RT7 Rugged Tablet for report printing from SD card

Questions we get asked:

  • Q: What is the cooling source? A: Refrigeration
  • Q: Can it be air deployed? A: Yes
  • Q: Can each chamber be set to a different temperature? A: Yes
  • Q: How long do the batteries last? A: Up to 48 hours at 35°C
  • Q: Is there a solar power option? A: Yes, ManPAC ES29 or ES59
  • Q: Is it UK made? A: Yes

CoolBOX Range

For blood, drugs, and all temperature controlled transport and storage applications, from 2 - 45 litres and from -80°C to +30°C
