Portable CoolBOX

M12DCe

The classic CoolBOX. M12DCe uses a micro refrigeration compressor for optimal power and efficiency. Built in Li-Ion batteries maintain cooling for up to 36 hours in moderate temperatures, 12 hours overnight in the desert at 40°C+

M12DCeH option allows operation in low temperature environments down to -20°C

  • 4-8°C cooled storage
  • DC and AC power source
  • data logging and reporting
  • NSN 4110-99-217-4289

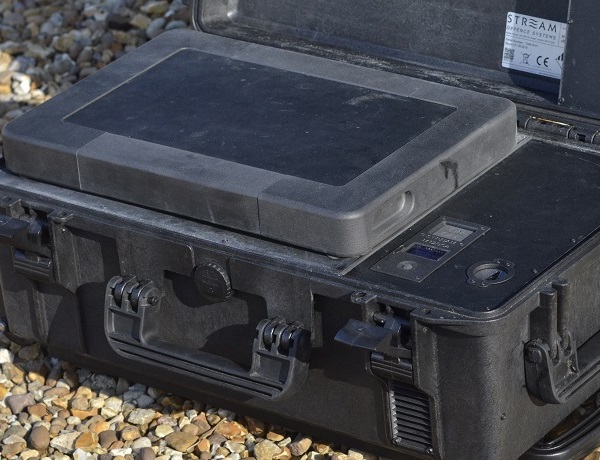

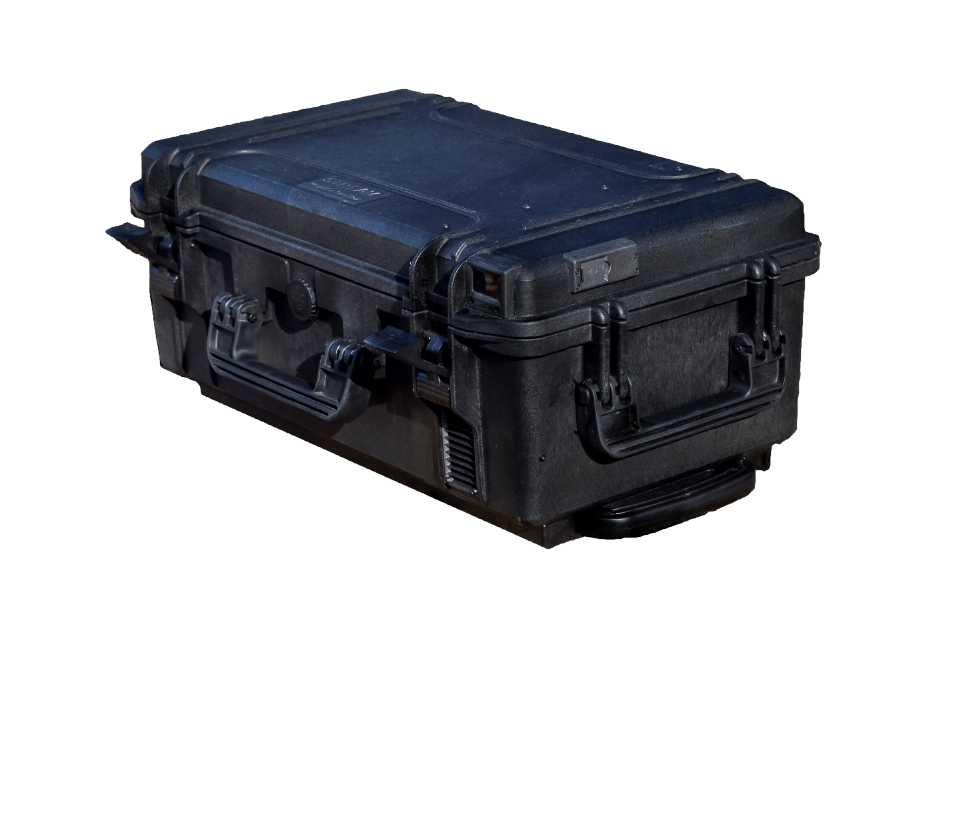

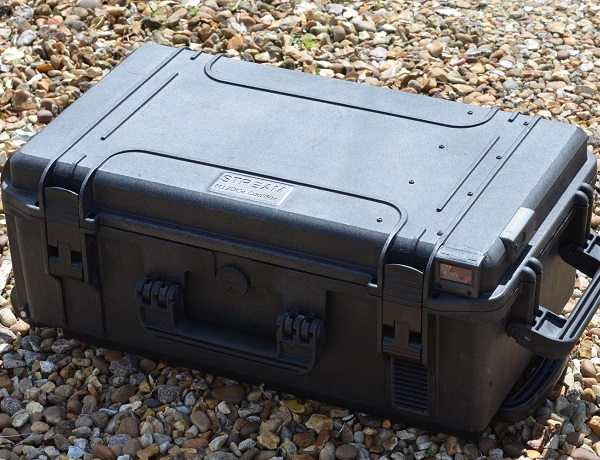

The M12DCe portable rugged CoolBox is the original product in the range. It is a perfect fit for highly mobile operations providing critical blood supplies. The removeable basket in the cold chamber can hold up to 12 x 250 ml blood bags or equivalent. The unit can be air dropped from an aircraft/helicopter and is easily carried by one person.

As designed for UK forces.

  • Low observable matt black
  • external display showing temperature and battery state
  • SD card slot for data recording standard CSV files
  • reports can be easily generated using Stream VISI software (Windows/Android)

Rugged enclosure for tactical environments

Simple to use under pressure - turn on and it keeps cool

  • Carries up to 12 250ml blood bags
  • Weight 16.5 kg
  • Cooling: 7.4 litre capacity

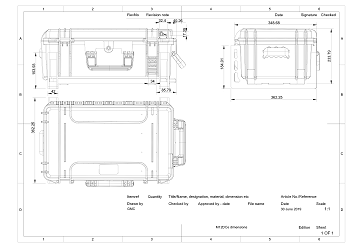

  • Size: 585mm w, x 361mm d x 238mm high
  • Power: 12v, 24v, 28v vehicle or aircraft supply at <10A
  • Temperature: 4°C at up 46°C (52° short periods)

A variety of accessories are available, largely based on customer requests. We are happy to take your further requests for additional items to support the product. Popular items include marine and desert insulated bags, air drop harnesses (in development), and solar power sources.

  • Custom internal basket sets available to your requirements
  • Spare SD cards
  • Marine Bag (Waterproof)
  • Desert Bag (Insulated)
  • ManPAC ES29 solar panel/battery
  • Spare PSU and Lead Set NSN 6130-99-412-1959
  • ManPAC ES59 solar panel/battery

Frequently asked quesions and their answers.

  • Q: What is the cooling source? A: Refrigeration.
  • Q: Can this be air deployed ? A: Yes
  • Q: Is it waterproof ? A: No (use Marine bag)
  • Q: Is it UK designed and made? A: Yes

CoolBOX Range

For blood, drugs, and all temperature controlled transport and storage applications, from 2 - 45 litres and from -80°C to +30°C

M4DCe

information

M12DCe

information

M16DCe

information

M29DCe

information

M45DCe

information

A10DCe

information

V10DCe

information
